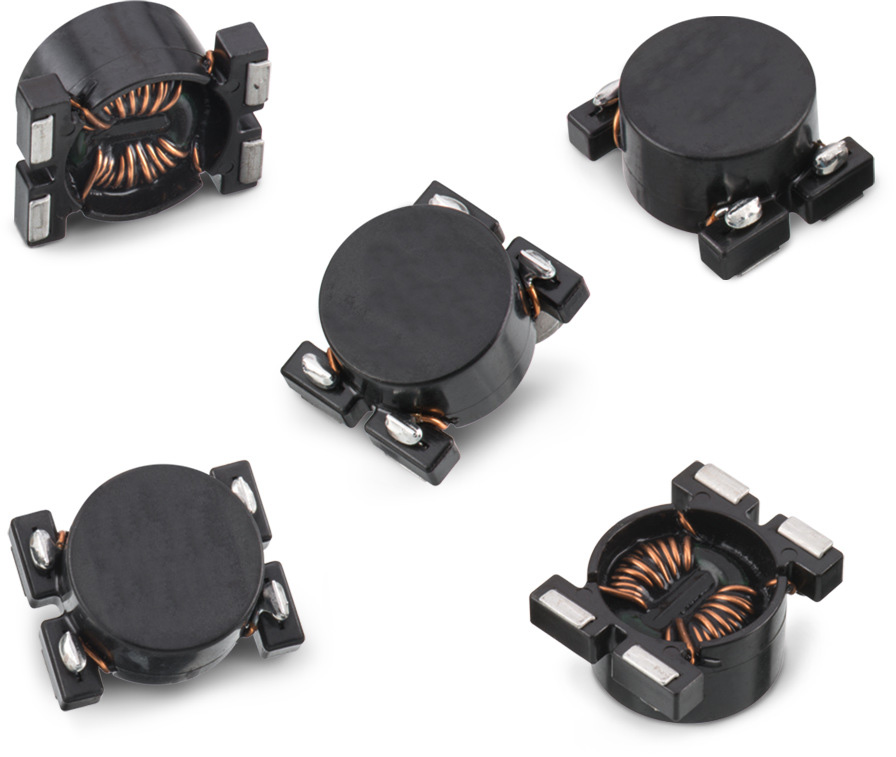

LF SMD Common Mode Power Line Choke

Product Name:

LF SMD Common Mode Power Line Choke

Product Description

Toroidal Magnetic Common Mode Choke Coil

TPB HV Three-Phase Common Mode Power Line Choke

power Toroidal common mode Inductors

common mode choke inductance

Common Mode Power Line Choke

common mode differential mode

Toroidal Magnetic Choke Coil

ring Inductances EMI Filters

EMC PFC Choke Coil

Power line EMI chokes

Power Inductor

High current Inductors

Through Hole Inductor

Audio HF Chokes

Ferrite Iron Core Inductor

Toroidal coils Inductor

switch power inductor

common mode core

common mode inductance

common mode line choke

Bobbin Inductor Coil

Inductor Choke Coil

Filter Inductor

Ferrite Core Inductor

· SMD power line choke

· Compact size

· Toroidal core with sector winding

· High attenuation of common mode interferences in low and middle frequency range

· Recommended solder profile: Reflow

· Operating temperature: –40 ºC to +125 ºC

· Mains filter

· Power electronics

· SMPS

Type SH

Order Code	IR 1	L1	RDC1 max.	VR	VT	Download
Order Code	(A)	(mH)	(Ω)	(V (AC))	VT	Download
FKS-7446630047	0.4	47	2.6	250	1500 V (AC)	FKS-7446630047.pdf
FKS-7446630039	0.55	39	1.7	250	1500 V (AC)	FKS-7446630039.pdf
FKS-7446630027	0.6	27	1.2	250	1500 V (AC)	FKS-7446630027.pdf
FKS-7446631010	1	10	0.55	250	1500 V (AC)	FKS-7446631010.pdf
FKS-7446631007	1.4	6.8	0.3	250	1500 V (AC)	FKS-7446631007.pdf
FKS-7446632003	2.25	3.3	0.15	250	1500 V (AC)	FKS-7446632003.pdf
FKS-7446632002	2.75	2.2	0.1	250	1500 V (AC)	FKS-7446632002.pdf
FKS-7446632001	3	1	0.06	250	1500 V (AC)	FKS-7446632001.pdf
FKS-74466340007	5.25	0.7	0.03	250	1500 V (AC)	FKS-74466340007.pdf
