SQ common mode inductor

Professional manufacturers directly supply large quantities of stock, can be customized

Line diameter: 0.2*1.5mm/0.3*1.0mm/0.60*1.0mm
Inductance: 40mH/ 30mH/712mH

Production and supply of SQ19, SQ15, Q flat coil inductors, common mode inductors, filter inductors, high power common mode inductors
Instead of UU9.8
Flat copper wire size 0.13*1.0mm
Inductance 22MH
Q - shaped flat coil: trend products

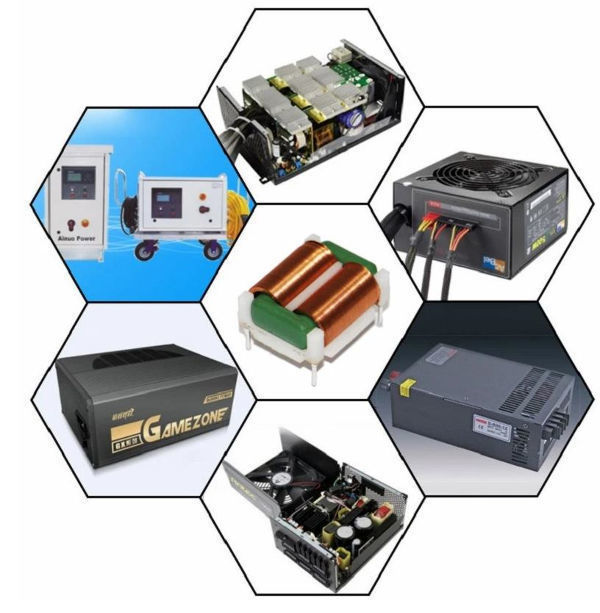

Compared with the traditional coil, UU10.5 and other products, it has great advantages in common mode inductors and filter inductors. High sense of value, high current, low resistance, good waveform, smooth winding, high conversion efficiency, can be widely used in 36W-1000W power supply, will lead a revolution in the power industry.

Key specifications/special features:

• SMD common mode choke (multilayer) capable of high-density mounting

• Dual common mode choke coil balun coil/filter

• SMD common mode choke (wire-wound) with low leakage flux

• 4.7μH to 100mH EMI filter for line filter common mode choke and EMI coil filter

• Common mode choke used in pulse transformer

• Dual-wire wound common mode choke coil USB series for signal and noise suppression

• Applications:

• Dual-wire choke and high-current common mode choke coils

• EMI suppression common mode chokes

• Chokes designed using common mode choke coil structure to enable better noise suppression

• PFC correction choke

• Current-compensated ring core double chokes

• Double isolated chokes

• Current-compensated chokes

• Common mode line chokes for high-frequency data lines design

• Combination line filter chokes

• Power factor controller transformer

• Common mode EMI/RFI filter

• Each part of this series can be sold separately: UU9.8, UU10, UU16 and UT20
