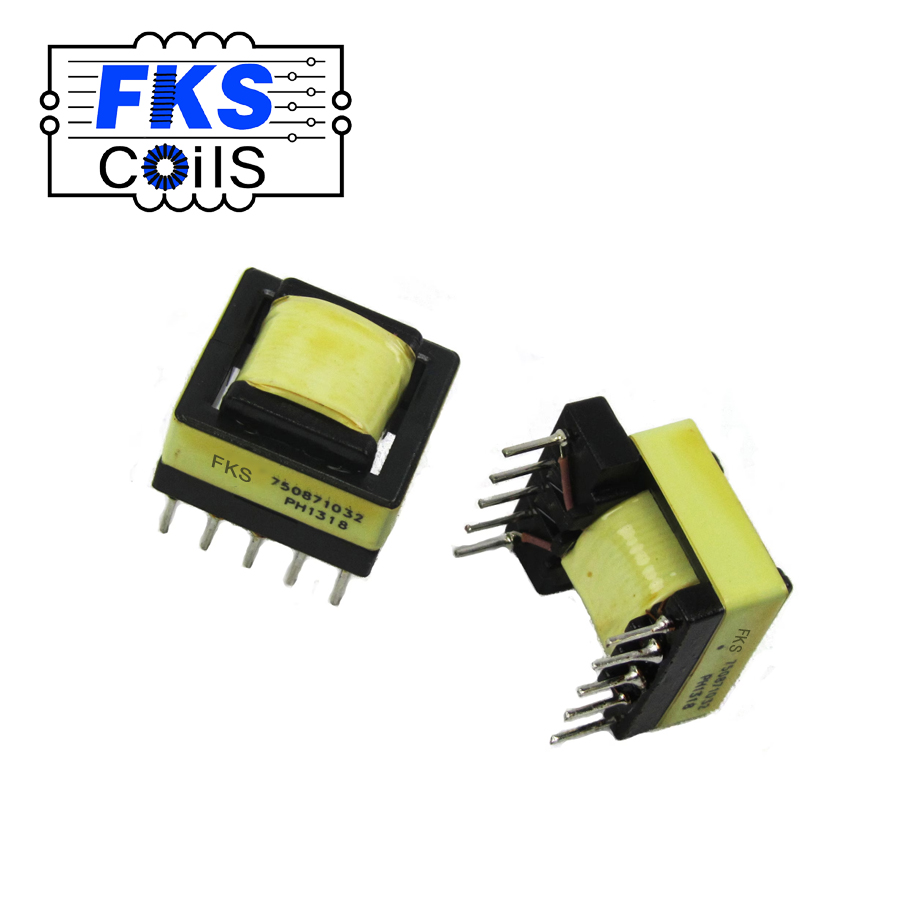

MIP-OLPI Offline Flyback Transformers for Power Integrations
Product Description
MIP-OLPI Offline Flyback Transformers for Power Integrations
Characteristics:
1. Universal offline input voltage
2. Output power from 2 to 35 W
3. Operating temperature: –40 °C to +125 °C
4. Isolation voltage: up to 4500VAC
Applications:
1. Offline-switch mode power supplies
2. Especially designed for several ICs from Power Integrations
Specification:
| Order Code | VIN (AC) | VOut1 (V) | IOut1 (mA) | VOut2 (V) | IOut2 (A) | L (mm) | W (mm) | H (mm) | Mount | Size |
| FKS750811023 | 85-265V | 8 | 300 | – | – | 20.32 | 24.38 | 16 | THT | EE16/8/5 |
| FKS7508110102 | 85-265V | 5 | 555 | – | – | 20.32 | 24.38 | 16 | THT | EE16/8/5 |
| FKS7508110101 | 85-265V | 5 | 1000 | – | – | 20.32 | 24.38 | 16 | THT | EE16/8/5 |
| FKS7508110100 | 85-265V | 6.2 | 322 | – | – | 20.32 | 24.38 | 16 | THT | EE16/8/5 |
| FKS750811019 | 85-265V | 6 | 330 | – | – | 20.32 | 24.38 | 16 | THT | EE16/8/5 |
| FKS750871032 | 85-265V | 12 | 350 | – | – | 16.9 | 18.8 | 13.97 | THT | EE16/7/5 |
| FKS750811016 | 85-265V | 5 | 1200 | – | – | 16.9 | 18.8 | 13 | THT | EE16/7/5 |
| FKS750310849 | 85-265V | 12 | 1000 | – | – | 21 | 25 | 16 | THT | EE20/10/6 |
| FKS750811630 | 85-265V | 12 | 2000 | 5 | 2.2 | 31 | 31 | 25 | THT | ER28/14 |
