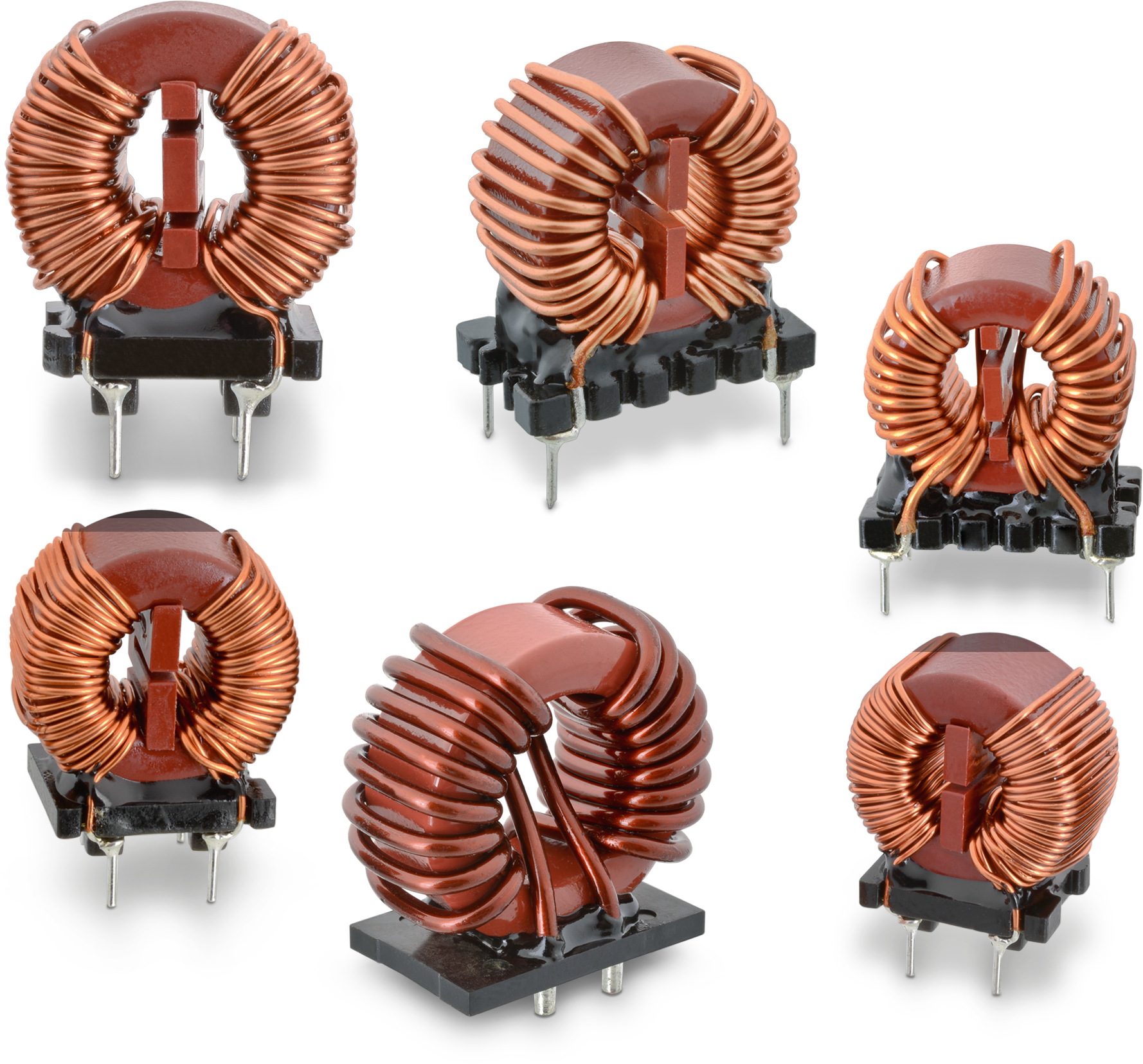

Characteristics

· Broadband filterring due to low capacitance winding technique

· High suppression of asymmetrical interferences also at low frequency range

· Very compact design

· Highest possible rated current by small size

· Operating temperature: –40 ºC to +125 ºC

· Flammability corresponding to UL 94 V-0

· Climatic category: 40/125/21

· Certified according to IEC 60938-2

Applications

· Power electronics

· Power line in- and output filter

· Filterring of devices without any ground connection

· Suppression of radio interferences in motors

· Suppression of common mode noise

Products

Type XS

Order Code	IR 1	L1	RDC1 max.	VR	VT	Download
	(A)	(mH)	(mΩ)	(V (AC))
FKS-744821039	0.3	39	3000	250	1500 V (AC)	FKS-744821039.pdf
FKS-744821120	0.5	20	1000	250	1500 V (AC)	FKS-744821120.pdf
FKS-744821110	0.7	10	350	250	1500 V (AC)	FKS-744821110.pdf
FKS-744821150	1	5	220	250	1500 V (AC)	FKS-744821150.pdf
FKS-744821240	1.5	4	140	250	1500 V (AC)	FKS-744821240.pdf
FKS-744821201	2	1	45	250	1500 V (AC)	FKS-744821201.pdf

Type S

Order Code	IR 1	L1	RDC1 max.	VR	VT	Download
	(A)	(mH)	(mΩ)	(V (AC))
FKS-744822120	0.5	20	540	250	1500 V (AC)	FKS-744822120.pdf
FKS-744822110	1	10	360	250	1500 V (AC)	FKS-744822110.pdf
FKS-744822233	1.5	3.3	120	250	1500 V (AC)	FKS-744822233.pdf
FKS-744822222	2	2.2	70	250	1500 V (AC)	FKS-744822222.pdf
FKS-744822301	3	1	35	250	1500 V (AC)	FKS-744822301.pdf

Type M

Order Code	IR 1	L1	RDC1 max.	VR	VT	Download
	(A)	(mH)	(mΩ)	(V (AC))
FKS-744823220	1.5	20	270	250	1500 V (AC)	FKS-744823220.pdf
FKS-744823210	2	10	125	250	1500 V (AC)	FKS-744823210.pdf
FKS-744823305	2.5	5	95	250	1500 V (AC)	FKS-744823305.pdf
FKS-744823333	2.5	3.3	60	250	1500 V (AC)	FKS-744823333.pdf
FKS-744823422	4	2.2	30	250	1500 V (AC)	FKS-744823422.pdf
FKS-744823601	6	1	13	250	1500 V (AC)	FKS-744823601.pdf

Type L

Order Code	IR 1	L1	RDC1 max.	VR	VT	Download
	(A)	(mH)	(mΩ)	(V (AC))
FKS-744824220	2	20	220	250	1500 V (AC)	FKS-744824220.pdf
FKS-744824310	3	10	105	250	1500 V (AC)	FKS-744824310.pdf
FKS-744824433	4	3.3	35	250	1500 V (AC)	FKS-744824433.pdf
FKS-744824622	6	2.2	20	250	1500 V (AC)	FKS-744824622.pdf
FKS-744824101	10	1	7	250	1500 V (AC)	FKS-744824101.pdf

Type XL

Order Code	IR 1	L1	RDC1 max.	VR	VT	Download
	(A)	(mH)	(mΩ)	(V (AC))
FKS-744825320	3	20	160	250	1500 V (AC)	FKS-744825320.pdf
FKS-744825433	3	33	210	250	1500 V (AC)	FKS-744825433.pdf
FKS-744825510	5	10	55	250	1500 V (AC)	FKS-744825510.pdf
FKS-7448256033	6	3.3	25	250	1500 V (AC)	FKS-7448256033.pdf
FKS-744825605	6	5	45	250	1500 V (AC)	FKS-744825605.pdf
FKS-7448258022	8	2.2	14	250	1500 V (AC)	FKS-7448258022.pdf
FKS-7448251201	12	1	9	250	1500 V (AC)	FKS-7448251201.pdf

Type XXL

Order Code	IR 1	L1	RDC1 max.	VR	VT	Download
	(A)	(mH)	(mΩ)	(V (AC))
FKS-7448261418	14	1.8	9.5	250	1500 V (AC)	FKS-7448261418.pdf
FKS-7448262013	20	1.3	6.2	250	1500 V (AC)	FKS-7448262013.pdf
FKS-7448262510	25	1	4.5	250	1500 V (AC)	FKS-7448262510.pdf
FKS-7448263505	35	0.5	2.3	250	1500 V (AC)	FKS-7448263505.pdf
