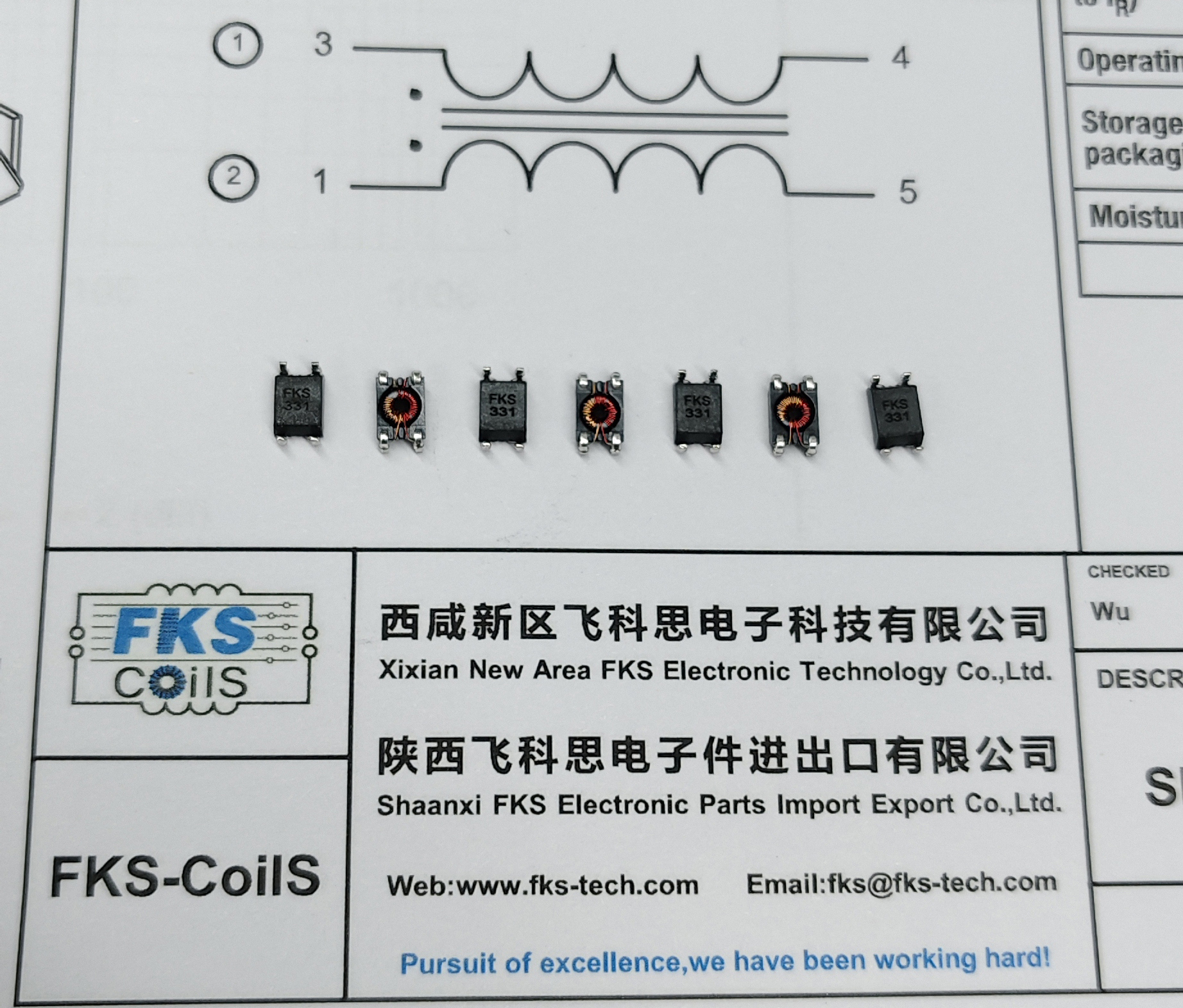

FKS-CoilS FKS744212331 SMT Common Mode Line Filter
SMT Common Mode Line Filter
FKS-CoilS FKS744212331
www.fks-coils.com
Characteristics
Low profile, only 1.65 mm
High current up to 300 mA
Rated voltage: 80 VDC (42 VAC)
Flammability corresponding to UL 94 V-0
Climatic category 40/105/21
Applications
USB
CAN
FireWire
Signal and sensor lines
Power supply system
Data lines
Suppression of common mode noise
| Order Code | L
(µH) | Zmax
(Ω) | IR
(mA) | VR
(V) |
| FKS744212100 | 10 | 1200 | 300 | 80 |
| FKS744212470 | 47 | 300 | 300 | 80 |
| FKS744212510 | 51 | 300 | 300 | 80 |
| FKS744212820 | 82 | 440 | 300 | 80 |
| FKS744212101 | 100 | 500 | 300 | 80 |
| FKS744212181 | 180 | 1000 | 300 | 80 |
| FKS744212221 | 220 | 1200 | 300 | 80 |
| FKS744212331 | 330 | 2000 | 300 | 80 |
