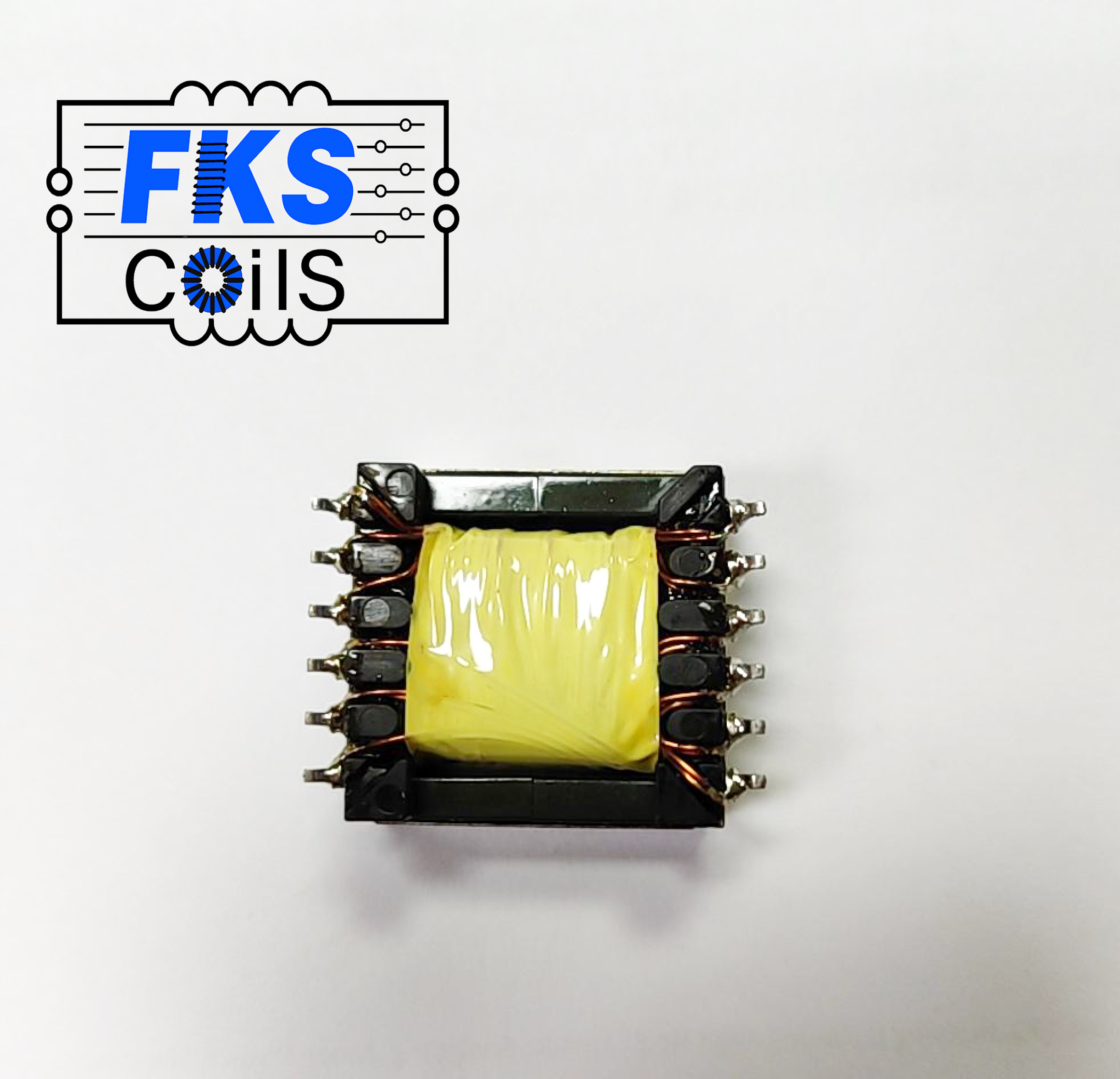

FKS-CoilS FB Flyback Transformer suitable for LT3573/ LT3574/ LT3575/ LT3748 FKS750311591 EFD25 SMD

www.fks-coils.com

Characteristics

• Easy design-in solution

• Less external components needed

• Small board space

• Low cost

• No optocoupler needed!

• Long term reliability voltage control

• No aging

• Same external parts for different output voltages

• Easy design of custom power supply due to standard circuit and change of transformers and two components for feedback loop

• Isolation voltage up to 2.5 kV

Applications

• Isolated power design

• Sensor interfaces

• Isolated telecom converters

• Power over Ethernet
