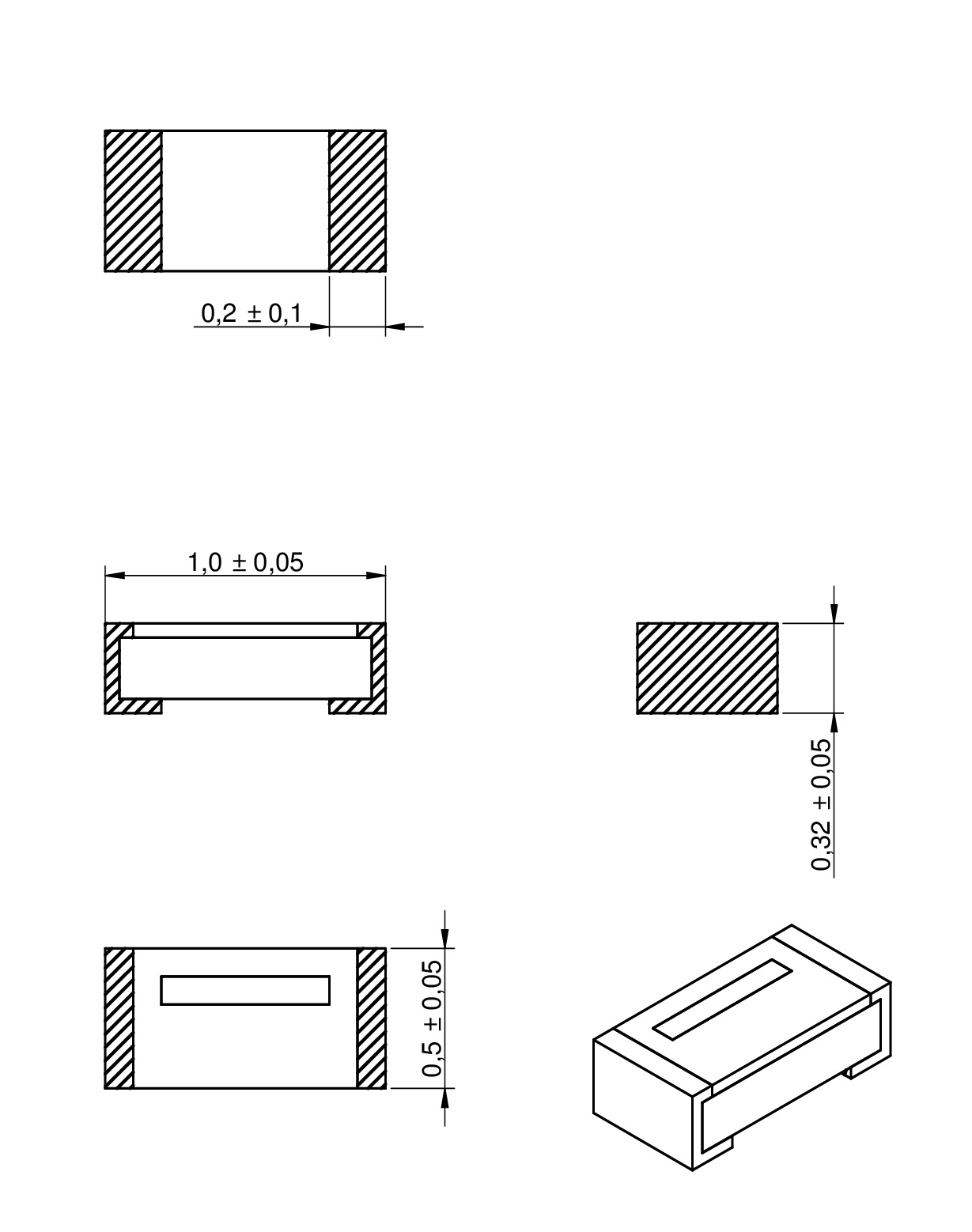

TCI Thinfilm Chip Inductor

Characteristics

• High self resonant frequency

• Tight tolerances of 2% (1% on request) or ± 0.1 nH and small inductance values

• Outstanding temperature stability

• In high frequency circuit the inductance is very stable

• Small inductance values

• Recommended solder profile: Reflow

• Operating temperature: –40 ºC to +125 ºC

Applications

• Mobile phone

• Pagers

• GPS products

• Wireless LAN

• Communication appliances

• RF Transceiver Module

Features:

RF Inductors
FKS Elektronik offers its KI, RFI, RFH, MK, TCI, and CAIR series of ceramic and ferrite RF inductors

FKS Elektronik offers RF products in two types: ceramic and ferrite. Their ceramic inductors include wire wound, thinfilm and multilayer. Their ferrite inductors have high current standards, which are for high frequency. The different characteristics and applications are based on the several various construction technology of the inductors.

The following inductors below are available :

1. Wire Wound: Based on the wire wound technology, the inductors distinguish a high quality factor and a high current carrying capacity. A benefit to these is low DC resistance.

• KI ceramic core inductors: Offer excellent Q factor and the highest possible self-resonant frequencies up to 12.5 GHz. They are available in sizes 0402A, 0603A, 0603C, 0805A, 0805C, and 1008A.

• RFI and RFH ferrite core inductors: Similar products with the exception that the RFH has a higher current handling capability and is available in only one size (1008), while the RFI series are available in two sizes (0805A and 1008A).

2. Multilayer: The MK series meet the demand for the proceeding miniaturization and, therefore, are available in small package sizes of 0201, 0402, 0402A, 0603, and 0603A. They are thermally stable and do not show any variation in inductance over a large temperature range.

3. Thin Film: The TCI series can be characterized with extreme accuracy, which results in a very tight tolerance product. Tolerances of about 2% and 1% are available upon request so it is possible to recognized precise application behavior. They are available in 0201 and 0402 sizes.

4. Air Coil: The CAIR series are characterized by very high quality factors, low frequency range (Q > 100), and high termperature stability with a very high resonance frequency and a guaranteed greater rated current compared to other RF inductors. They are available in sizes 1322, 3136, 1340, 4248, and 3168.

Order code:

744900010 744901010      744900012       744901012 744900013 744900014 744900015 744901015 744900018 744901018 744900019 744900020 744900022

744901022 744900027      744901027 744901030 744900033      744901033 744901036 744900039 744901039 744901043 744900047 744901047 744901051

744900056 744901056 744901058 744901062 744900068 744901068 744901072 744900082 744901082 744901091 744900110 744901110 744901112

744901115 744901118 744901122 744901127
