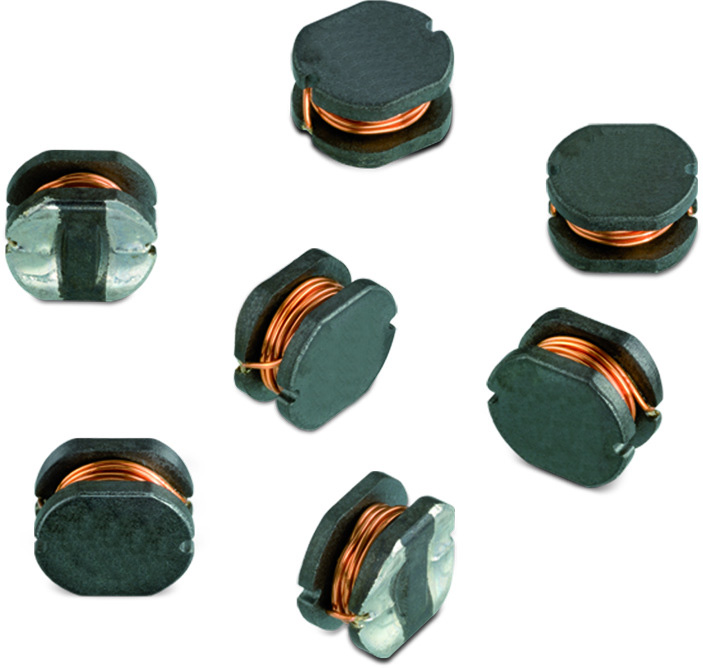

PD2A SMD Power Inductor

Product Name:

PD2A SMD Power Inductor

Product Description

Power Inductor

High current Inductors

Through Hole Inductor

Audio HF Chokes

Ferrite Iron Core Inductor

Toroidal coils Inductor

switch power inductor

common mode core

common mode inductance

common mode line choke

Bobbin Inductor Coil

Inductor Choke Coil

Filter Inductor

Ferrite Core Inductor

Characteristics

· Open size / unshielded

· Saturation currents up to 15 A

· Low tolerances at high inductance values

· Operating temperature: -40°C to +125°C

Applications

· Integrated DC/DC-converter

· Switching regulators with low operating voltage

· Perfectly suitable for switching regulators with extremely high efficiency

· Optimal attenuation in MHz frequency range

Products

Size	L	W	H	Mount
Size	(mm)	(mm)	(mm)	Mount
4532	4	4.5	3.2	SMT
5848	5.2	5.8	4.5	SMT
7850	7	7.8	5	SMT
1054	9	10	5.4	SMT

4532

Order Code	L	L1	IR 1	ISAT 1	RDC1 max.	RDC1 max.	fres 1	Version	Qty.	Download
Order Code	(mm)	(µH)	(A)	(A)	(Ω)	(Ω)	(MHz)	Version	Qty.	Download
FKS-7847730	4	1	4	5.72	0.049	0.049	110	SMT	1500	FKS-7847730.pdf
FKS-784773018	4	1.8	2.7	3.6	0.064	0.064	85	SMT	1500	FKS-784773018.pdf
FKS-784773022	4	2.2	2.5	3.38	0.071	0.071	74	SMT	1500	FKS-784773022.pdf
FKS-784773033	4	3.3	2	2.88	0.086	0.086	55	SMT	1500	FKS-784773033.pdf
FKS-784773039	4	3.9	1.88	2.57	0.094	0.094	50	SMT	1500	FKS-784773039.pdf
FKS-784773047	4	4.7	1.82	2.46	0.11	0.11	45	SMT	1500	FKS-784773047.pdf
FKS-784773056	4	5.6	1.58	2.43	0.126	0.126	40	SMT	1500	FKS-784773056.pdf
FKS-784773068	4	6.8	1.54	2.1	0.131	0.131	35	SMT	1500	FKS-784773068.pdf
FKS-784773082	4	8.2	1.5	1.8	0.146	0.146	30	SMT	1500	FKS-784773082.pdf
FKS-78477310	4	10	1.45	1.74	0.182	0.182	30	SMT	1500	FKS-78477310.pdf
FKS-784773112	4	12	1.28	1.62	0.21	0.21	30	SMT	1500	FKS-784773112.pdf
FKS-784773115	4	15	1.2	1.46	0.235	0.235	27	SMT	1500	FKS-784773115.pdf
FKS-784773118	4	18	1.1	1.29	0.338	0.338	22	SMT	1500	FKS-784773118.pdf
FKS-784773122	4	22	1	1.22	0.37	0.37	20	SMT	1500	FKS-784773122.pdf
FKS-784773127	4	27	0.94	1	0.522	0.522	17	SMT	1500	FKS-784773127.pdf
FKS-784773133	4	33	0.86	0.9	0.54	0.54	16	SMT	1500	FKS-784773133.pdf
FKS-784773139	4	39	0.77	0.87	0.587	0.587	15	SMT	1500	FKS-784773139.pdf
FKS-784773147	4	47	0.68	0.77	0.844	0.844	12	SMT	1500	FKS-784773147.pdf
FKS-784773156	4	56	0.64	0.75	0.937	0.937	12	SMT	1500	FKS-784773156.pdf
FKS-784773168	4	68	0.56	0.68	1.117	1.117	11	SMT	1500	FKS-784773168.pdf

5848

Order Code	L	L1	IR 1	ISAT 1	RDC1 max.	RDC1 max.	fres 1	Version	Qty.	Download
Order Code	(mm)	(µH)	(A)	(A)	(Ω)	(Ω)	(MHz)	Version	Qty.	Download
FKS-784774003	5.2	0.33	10.8	15.3	0.008	0.008	295	SMT	1500	FKS-784774003.pdf
FKS-784774006	5.2	0.6	8.2	13.5	0.018	0.018	210	SMT	1500	FKS-784774006.pdf
FKS-784774022	5.2	2.2	4.6	8.2	0.041	0.041	54	SMT	1500	FKS-784774022.pdf
FKS-784774027	5.2	2.7	4	8	0.045	0.045	50	SMT	1500	FKS-784774027.pdf
FKS-784774033	5.2	3.3	3.7	7.5	0.06	0.06	43	SMT	1500	FKS-784774033.pdf
FKS-784774047	5.2	4.7	3	5.5	0.071	0.071	33	SMT	1500	FKS-784774047.pdf
FKS-784774068	5.2	6.8	2.4	5	0.082	0.082	28	SMT	1500	FKS-784774068.pdf
FKS-78477410	5.2	10	2.2	2.5	0.1	0.1	26	SMT	1500	FKS-78477410.pdf
FKS-784774112	5.2	12	2	1.94	0.11	0.11	24	SMT	1500	FKS-784774112.pdf
FKS-784774115	5.2	15	1.53	1.9	0.14	0.14	20	SMT	1500	FKS-784774115.pdf
FKS-784774118	5.2	18	1.45	1.69	0.15	0.15	19	SMT	1500	FKS-784774118.pdf
FKS-784774122	5.2	22	1.28	1.53	0.18	0.18	16	SMT	1500	FKS-784774122.pdf
FKS-784774127	5.2	27	1.19	1.4	0.2	0.2	15	SMT	1500	FKS-784774127.pdf
FKS-784774133	5.2	33	1.09	1.17	0.23	0.23	14	SMT	1500	FKS-784774133.pdf
FKS-784774139	5.2	39	0.94	1.1	0.32	0.32	12	SMT	1500	FKS-784774139.pdf
FKS-784774147	5.2	47	0.86	1	0.37	0.37	10	SMT	1500	FKS-784774147.pdf
FKS-784774156	5.2	56	0.77	0.9	0.42	0.42	10	SMT	1500	FKS-784774156.pdf
FKS-784774168	5.2	68	0.64	0.86	0.46	0.46	10	SMT	1500	FKS-784774168.pdf
FKS-784774182	5.2	82	0.6	0.72	0.6	0.6	8	SMT	1500	FKS-784774182.pdf
FKS-78477420	5.2	100	0.57	0.68	0.65	0.65	7	SMT	1500	FKS-78477420.pdf
FKS-784774212	5.2	120	0.49	0.63	0.93	0.93	7	SMT	1500	FKS-784774212.pdf
FKS-784774215	5.2	150	0.46	0.54	1.1	1.1	6	SMT	1500	FKS-784774215.pdf
FKS-784774218	5.2	180	0.42	0.5	1.38	1.38	6	SMT	1500	FKS-784774218.pdf
FKS-784774222	5.2	220	0.41	0.47	1.57	1.57	5	–	1500	FKS-784774222.pdf

7850

Order Code	L	L1	IR 1	ISAT 1	RDC1 max.	RDC1 max.	fres 1	Version	Qty.	Download
Order Code	(mm)	(µH)	(A)	(A)	(Ω)	(Ω)	(MHz)	Version	Qty.	Download
FKS-784775022	7	2.2	6	6	0.015	0.015	70	SMT	500	FKS-784775022.pdf
FKS-784775033	7	3.3	4.9	4.9	0.018	0.018	57	SMT	500	FKS-784775033.pdf
FKS-784775047	7	4.7	4.5	4.5	0.019	0.019	47	SMT	500	FKS-784775047.pdf
FKS-784775056	7	5.6	4	4	0.022	0.022	34	SMT	500	FKS-784775056.pdf
FKS-784775068	7	6.8	3.7	3.8	0.026	0.026	30	SMT	500	FKS-784775068.pdf
FKS-784775082	7	8.2	3.2	3.2	0.04	0.04	33	SMT	500	FKS-784775082.pdf
FKS-78477510	7	10	2.3	2.95	0.07	0.07	23	SMT	500	FKS-78477510.pdf
FKS-784775112	7	12	2.18	2.23	0.08	0.08	20	SMT	500	FKS-784775112.pdf
FKS-784775115	7	15	1.93	2.2	0.09	0.09	18	SMT	500	FKS-784775115.pdf
FKS-784775118	7	18	1.89	2.14	0.1	0.1	17	SMT	500	FKS-784775118.pdf
FKS-784775122	7	22	1.76	1.81	0.11	0.11	15	SMT	500	FKS-784775122.pdf
FKS-784775127	7	27	1.48	1.62	0.12	0.12	14	SMT	500	FKS-784775127.pdf
FKS-784775133	7	33	1.35	1.47	0.13	0.13	13	SMT	500	FKS-784775133.pdf
FKS-784775139	7	39	1.25	1.33	0.16	0.16	12	SMT	500	FKS-784775139.pdf
FKS-784775147	7	47	1.17	1.24	0.18	0.18	10	SMT	500	FKS-784775147.pdf
FKS-784775168	7	68	0.99	1.05	0.28	0.28	8	SMT	500	FKS-784775168.pdf
FKS-784775182	7	82	0.9	0.95	0.37	0.37	7	SMT	500	FKS-784775182.pdf
FKS-78477520	7	100	0.77	0.86	0.43	0.43	7	SMT	500	FKS-78477520.pdf
FKS-784775212	7	120	0.67	0.81	0.47	0.47	6	SMT	500	FKS-784775212.pdf
FKS-784775215	7	150	0.6	0.71	0.64	0.64	6	SMT	500	FKS-784775215.pdf
FKS-784775218	7	180	0.55	0.57	0.71	0.71	5	SMT	500	FKS-784775218.pdf
FKS-784775222	7	220	0.51	0.56	0.96	0.96	5	SMT	500	FKS-784775222.pdf
FKS-784775227	7	270	0.47	0.51	1.11	1.11	4	SMT	500	FKS-784775227.pdf
FKS-784775233	7	330	0.43	0.48	1.26	1.26	4	SMT	500	FKS-784775233.pdf
FKS-784775239	7	390	0.38	0.43	1.77	1.77	3	SMT	500	FKS-784775239.pdf
FKS-784775247	7	470	0.36	0.38	1.96	1.96	3	SMT	500	FKS-784775247.pdf

1054

Order Code	L	L1	IR 1	ISAT 1	RDC1 max.	RDC1 max.	fres 1	Version	Qty.	Download
Order Code	(mm)	(µH)	(A)	(A)	(Ω)	(Ω)	(MHz)	Version	Qty.	Download
FKS-784776047	9	4.7	5	6	0.017	0.017	43	SMT	500	FKS-784776047.pdf
FKS-784776056	9	5.6	4.8	5.5	0.019	0.019	40	SMT	500	FKS-784776056.pdf
FKS-784776068	9	6.8	4.4	5	0.022	0.022	30	SMT	500	FKS-784776068.pdf
FKS-784776082	9	8.2	4.2	4.25	0.026	0.026	25	SMT	500	FKS-784776082.pdf
FKS-78477610	9	10	2.98	3.24	0.06	0.06	22	SMT	500	FKS-78477610.pdf
FKS-784776112	9	12	2.72	3.15	0.07	0.07	20	SMT	500	FKS-784776112.pdf
FKS-784776115	9	15	2.47	2.88	0.08	0.08	19	SMT	500	FKS-784776115.pdf
FKS-784776118	9	18	2.36	2.43	0.09	0.09	18	SMT	500	FKS-784776118.pdf
FKS-784776122	9	22	2.04	2.07	0.1	0.1	16	SMT	500	FKS-784776122.pdf
FKS-784776127	9	27	1.95	1.98	0.11	0.11	15	SMT	500	FKS-784776127.pdf
FKS-784776133	9	33	1.78	1.89	0.12	0.12	12	SMT	500	FKS-784776133.pdf
FKS-784776139	9	39	1.62	1.8	0.14	0.14	11	SMT	500	FKS-784776139.pdf
FKS-784776147	9	47	1.45	1.62	0.17	0.17	11	SMT	500	FKS-784776147.pdf
FKS-784776156	9	56	1.36	1.53	0.19	0.19	9	SMT	500	FKS-784776156.pdf
FKS-784776168	9	68	1.19	1.49	0.22	0.22	8	SMT	500	FKS-784776168.pdf
FKS-784776182	9	82	1.11	1.17	0.25	0.25	7	SMT	500	FKS-784776182.pdf
FKS-78477620	9	100	1.02	1.1	0.35	0.35	7	SMT	500	FKS-78477620.pdf
FKS-784776212	9	120	0.94	0.99	0.4	0.4	6	SMT	500	FKS-784776212.pdf
FKS-784776215	9	150	0.81	0.9	0.47	0.47	5	SMT	500	FKS-784776215.pdf
FKS-784776218	9	180	0.76	0.78	0.63	0.63	5	SMT	500	FKS-784776218.pdf
FKS-784776222	9	220	0.67	0.77	0.73	0.73	4.5	SMT	500	FKS-784776222.pdf
FKS-784776227	9	270	0.62	0.68	0.97	0.97	4	SMT	500	FKS-784776227.pdf
FKS-784776233	9	330	0.52	0.59	1.15	1.15	4	SMT	500	FKS-784776233.pdf
FKS-784776239	9	390	0.49	0.54	1.3	1.3	3.7	SMT	500	FKS-784776239.pdf
FKS-784776247	9	470	0.44	0.5	1.48	1.48	3	SMT	500	FKS-784776247.pdf
